Special relativity, formulated by Albert Einstein in 1905, has
various practical applications in our daily lives and in
advanced technological systems, some of which might be
surprising given the theory's abstract nature. Here are a few
significant examples:

  1. Global Positioning System (GPS)

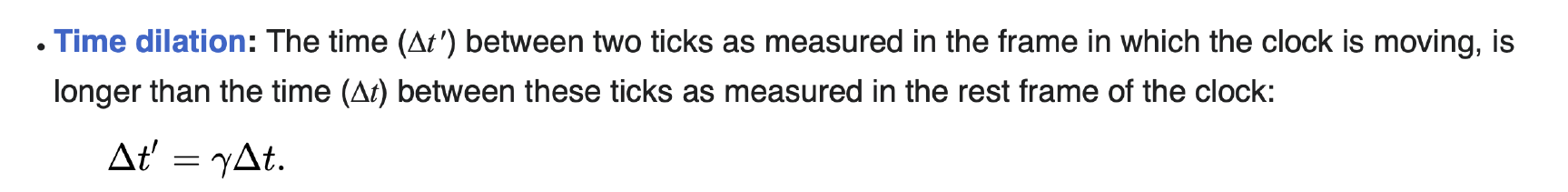

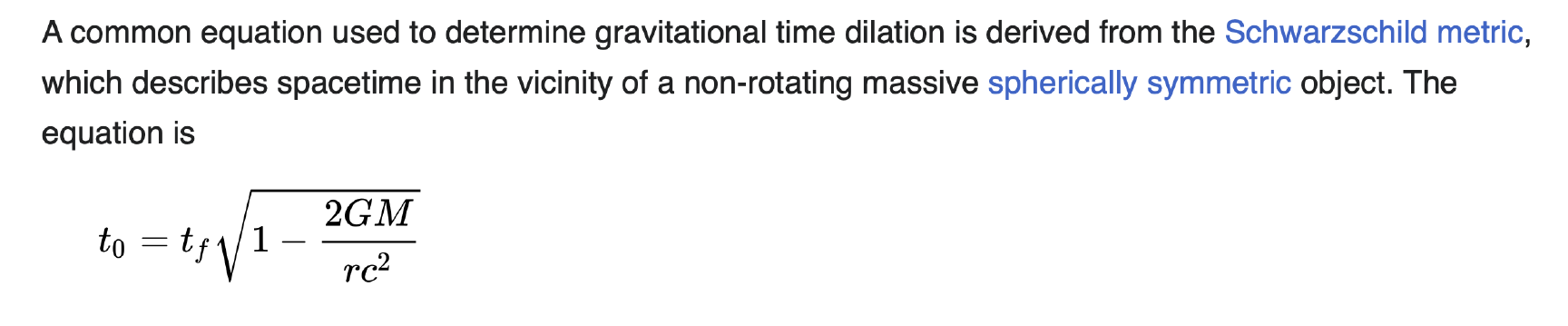

     Time Dilation Correction: The clocks on GPS satellites
     experience time differently due to their high speeds
     (special relativity) and weaker gravitational fields
     (general relativity) compared to clocks on the Earth's
     surface. Engineers must account for these relativistic
     effects to maintain the accuracy of GPS systems.





     You all have GPS receivers
     iPhone Apps: Compass.app, GNSS View.app, GPS Location.app


  2. Particle Accelerators

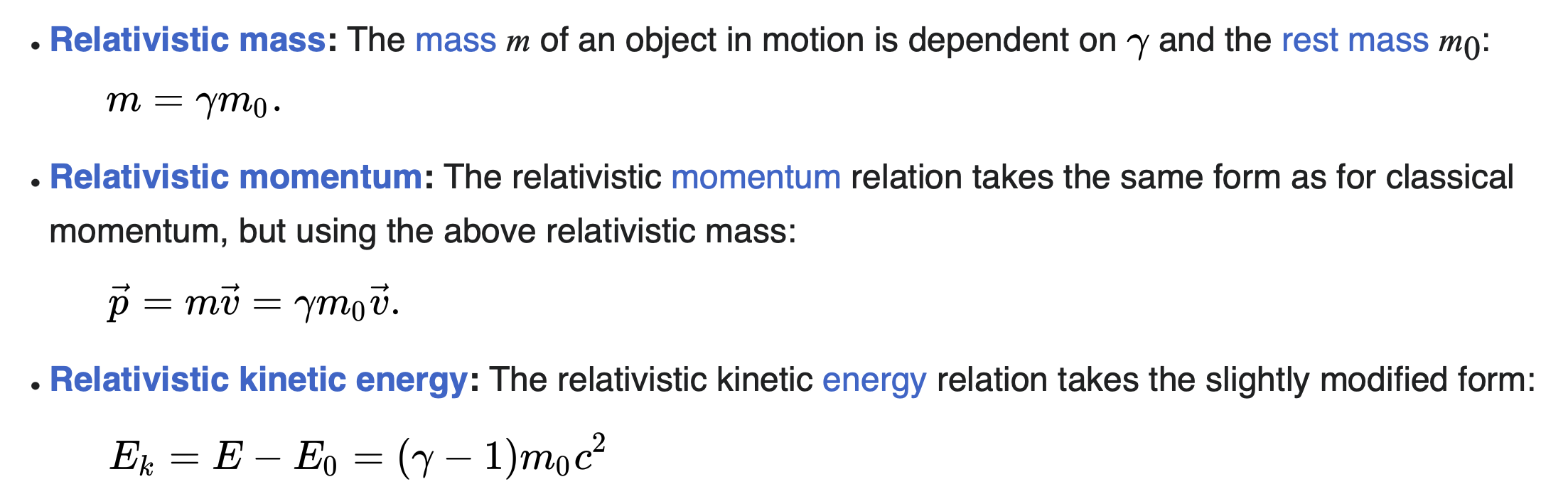

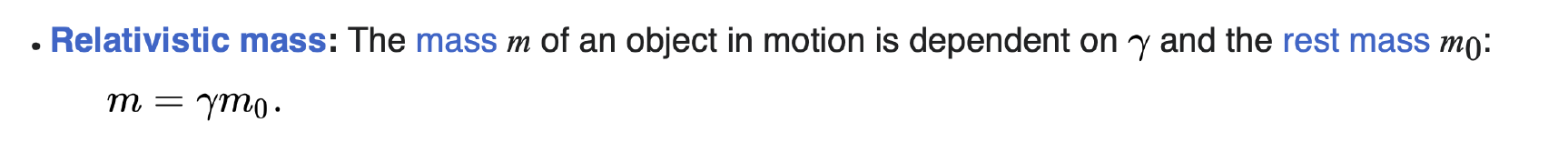

     Particle Behavior: In particle accelerators like the
     Large Hadron Collider, subatomic particles approach
     significant fractions of the speed of light. The theory
     of special relativity is crucial to predict the
     behaviors, mass, and energy of these particles
     accurately. At 0.99999999c    𝛾 > 7000




  3. Electricity Generation
     Nuclear Power Plants: The equivalence of mass and energy
     (E=mc^2) is foundational to understanding the energy
     release in nuclear reactions in the sun and nuclear power
     plants.





  4. Electromagnetic Theory
     Predicting Electromagnetic Phenomena: Special relativity
     helps in accurately describing the behavior of electric
     and magnetic fields in different inertial frames, which
     is crucial for understanding electromagnetic phenomena in
     moving systems.



     How Special Relativity Makes Magnets Work  (4+ min)
     https://www.youtube.com/watch?v=1TKSfAkWWN0




  5. Telecommunication
     Synchronization of Satellite Systems: Maintaining
     synchronized timekeeping among satellites, and between
     satellites and ground stations, demands consideration of
     relativistic effects.




  6. Materials Science
     Exploring Properties of Materials: At very high speeds or
     energies (such as in certain experimental settings),
     relativistic effects can influence the properties of
     materials, and understanding this is crucial for
     interpreting experimental data accurately.

     Einstein's theory of relativity explains fundamental
     properties of gold
       https://phys.org/news/2015-10-einstein-theory-relativity-fundamental-properties.html
       https://en.wikipedia.org/wiki/Relativistic_quantum_chemistry#Color_of_gold_and_caesium


  7. Medical Imaging
     Positron Emission Tomography (PET): Special relativity is
     important for understanding the behavior of particles in
     PET scans, as it involves antimatter (positrons) and
     their interaction with electrons.

     PET scans show that particles have a rest energy, and
     special relativity allows to calculate that energy.

     Physics and Instrumentation in PET*
       http://eknygos.lsmuni.lt/springer/370/13-39.pdf


  8. Astrophysics
     Cosmic Phenomena: Studying cosmic rays, black holes, and
     other high-energy phenomena in the cosmos often requires
     employing special relativity to comprehend the behavior
     and properties of particles and radiation in these
     environments.

     Time Dilation:
     - Pulsars: The rapid rotation of pulsars can be
     understood and accurately modeled only by taking into
     account relativistic effects. Time dilation plays a
     crucial role in calculating the periods and energies of
     pulsar emissions.

     - Gamma-Ray Bursts (GRBs): The short timescales of
     variability observed in GRBs suggest relativistic motion,
     as time dilation allows events that take place over
     longer timescales in the source frame to appear much
     shorter in the observer's frame.

     Length Contraction:
     - Jets from Active Galactic Nuclei (AGN): The
     relativistic jets emitted by AGN are observed to be
     moving at speeds very close to the speed of light.
     Special relativity helps in explaining the apparent
     superluminal motion (faster than light) and the structure
     of these jets.

     Relativistic Doppler Shift:
     - Redshift and Blueshift: The shift in the wavelength of
     light due to the motion of astronomical objects is
     calculated using the relativistic Doppler shift formula.
     This is crucial for understanding the kinematics of
     galaxies, stars, and other celestial bodies.

     - Spectral Line Analysis: Analyzing the spectral lines of
     stars and galaxies for their velocity components,
     especially when they are moving at a significant fraction
     of the speed of light.

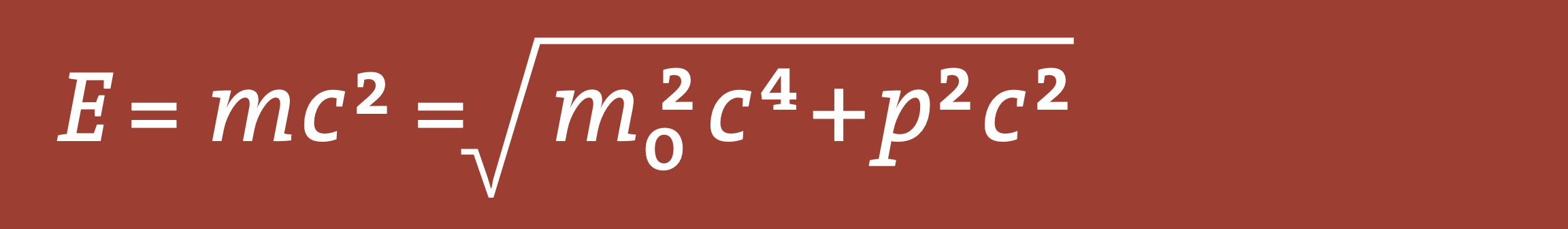

     Energy-Momentum Relation:
     - High-Energy Astrophysics: Studying cosmic rays,
     high-energy particles, and phenomena like supernova
     remnants requires using the relativistic energy-momentum
     relation.

     - Accretion Disks: In the vicinity of compact objects
     like black holes and neutron stars, the material in the
     accretion disks moves at relativistic speeds, requiring
     special relativity for accurate modeling.

     Mass-Energy Equivalence:

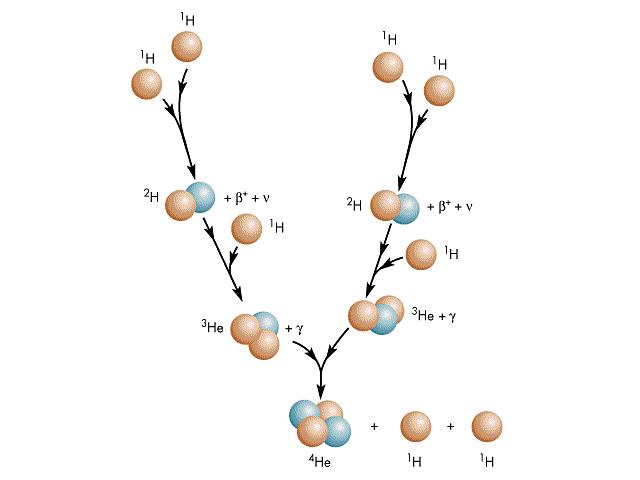

     - Nuclear Reactions in Stars: The principle of
     mass-energy equivalence  is crucial for understanding the
     energy production mechanisms in stars, where mass is
     converted into energy through nuclear fusion.

     - Supernovae and Neutron Stars: The processes and
     reactions that take place during supernova explosions and
     in the dense matter of neutron stars can only be
     understood by applying the principles of special
     relativity.

     Gravitational Lensing:
     - While gravitational lensing primarily falls under the
     domain of general relativity, the velocities of the
     lensing objects and the light can sometimes be high
     enough that special relativistic effects need to be
     considered.

     Cosmology:
     - Large-Scale Structure of the Universe: Understanding
     the motion of galaxies, the cosmic microwave background
     radiation, and other cosmological phenomena involves
     relativistic corrections.

     Relativistic Beaming:
     - The observed brightness of jets and other
     relativistically moving objects is affected by
     relativistic beaming, which makes objects moving toward
     us appear brighter than they would if they were at rest.


  9. Electronics
     Designing of Electromagnetic Coils: In certain high-speed
     applications, special relativity can influence the design
     by considering how electric and magnetic fields transform
     between different frames of reference.

     How Special Relativity Makes Magnets Work  (4+ min)
     https://www.youtube.com/watch?v=1TKSfAkWWN0)


 10. Quantum Mechanics
     Relativistic Quantum Mechanics: For particles moving at
     speeds that are a significant fraction of the speed of
     light, special relativity must be integrated into quantum
     mechanics, leading to theories like Quantum
     Electrodynamics (QED).

     Book Recommendation
     QED: The Strange Theory of Light and Matter - published
     in 1985 by American physicist and Nobel laureate Richard
     Feynman.

     Famous the world over for the creative brilliance of his
     insights into the physical world, Nobel Prize-winning
     physicist Richard Feynman also possessed an extraordinary
     talent for explaining difficult concepts to the
     nonscientist. QED--the edited version of four lectures on
     quantum electrodynamics that Feynman gave to the general
     public at UCLA as part of the Alix G. Mautner Memorial
     Lecture series--is perhaps the best example of his
     ability to communicate both the substance and the spirit
     of science to the layperson.

     The focus, as the title suggests, is quantum
     electrodynamics (QED), the part of the quantum theory of
     fields that describes the interactions of the quanta of
     the electromagnetic field-light, X rays, gamma rays--with
     matter and those of charged particles with one another.
     By extending the formalism developed by Dirac in 1933,
     which related quantum and classical descriptions of the
     motion of particles, Feynman revolutionized the quantum
     mechanical understanding of the nature of particles and
     waves. And, by incorporating his own readily visualizable
     formulation of quantum mechanics, Feynman created a
     diagrammatic version of QED that made calculations much
     simpler and also provided visual insights into the
     mechanisms of quantum electrodynamic processes.


     Feynman Diagrams
       https://www.youtube.com/watch?v=qe7atm1x6Mg



The applications of special relativity are ingrained in many
advanced technologies and scientific investigations. Even
though its effects are typically negligible at the speeds
encountered in everyday life, they become crucially important
in the high-speed and high-energy regimes encountered in
various technological and astrophysical contexts.
Consequently, special relativity forms a foundational
component of modern physics and technological development.

Finally - How we know that Einstein's General Relativity can't
be quite right  (5+ Min)
  https://www.youtube.com/watch?v=Ov98y_DCvRY






Interactive Minkowski Diagram
  https://sciencesims.com/sims/minkowski/
Lorentz Factor Calculator  𝛾 = 1/√(1-(v^2/c^2))
  https://www.azcalculator.com/calc/lorentz-factor-calculator.php
  https://en.wikipedia.org/wiki/Lorentz_factor




Five Papers That Shook the World
  https://physicsworld.com/a/five-papers-that-shook-the-world/

ON THE ELECTRODYNAMICS OF MOVING BODIES  By A. Einstein
  http://www.fourmilab.ch/etexts/einstein/specrel/specrel.pdf

Beautiful, Simple and Profound  (90 min)
  https://www.youtube.com/watch?v=R_yk45m4E3M
  https://www.youtube.com/watch?v=ASzECGtSpqQ

Spacetime: All the universe's a stage
  https://www.symmetrymagazine.org/article/spacetime-all-the-universes-a-stage
