Apple Silicon

  Apple silicon is a series of system on a chip (SoC) and
  system in a package (SiP) processors designed by Apple Inc.,
  mainly using the ARM architecture. They are the basis of
  most new Mac computers as well as all iPhone, iPad, Apple
  TV, and Apple Watch devices and of products such as AirPods,
  AirTag and HomePod.





Mac computers with Apple silicon
  https://www.apple.com/mac/
  https://arxiv.org/pdf/2211.00720.pdf

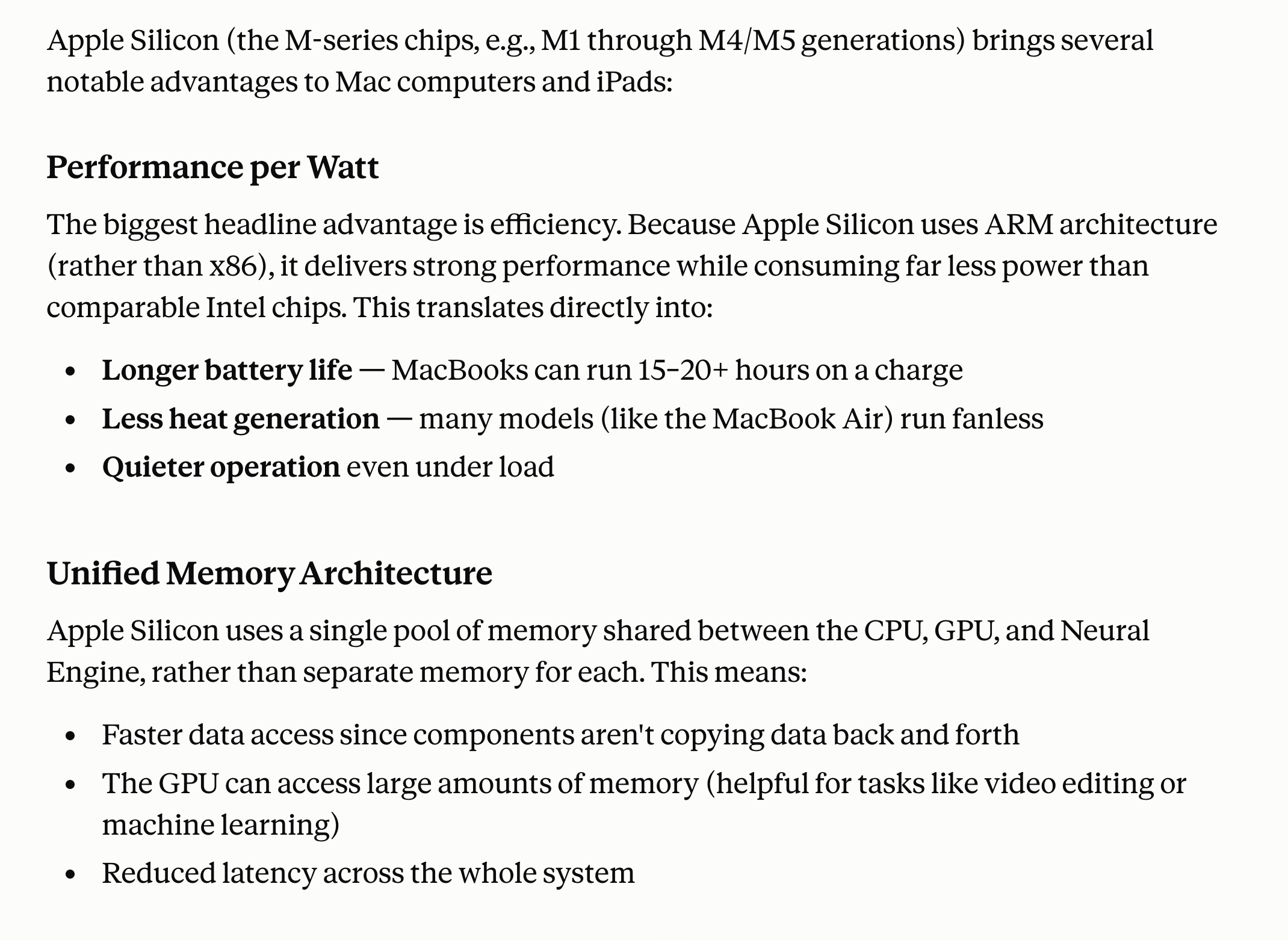

Unified memory architecture (UMA) is a hallmark of Apple silicon
  https://macdailynews.com/2023/11/08/ram-in-a-mac-iphone-or-ipad-is-not-the-same-as-ram-in-a-pc-phone-or-tablet/

  The measure in nanometers (nm) describes the size of the
  smallest features that can be reliably manufactured on the
  chip. Smaller transistors can be packed more densely, use
  less energy, and generate less heat.

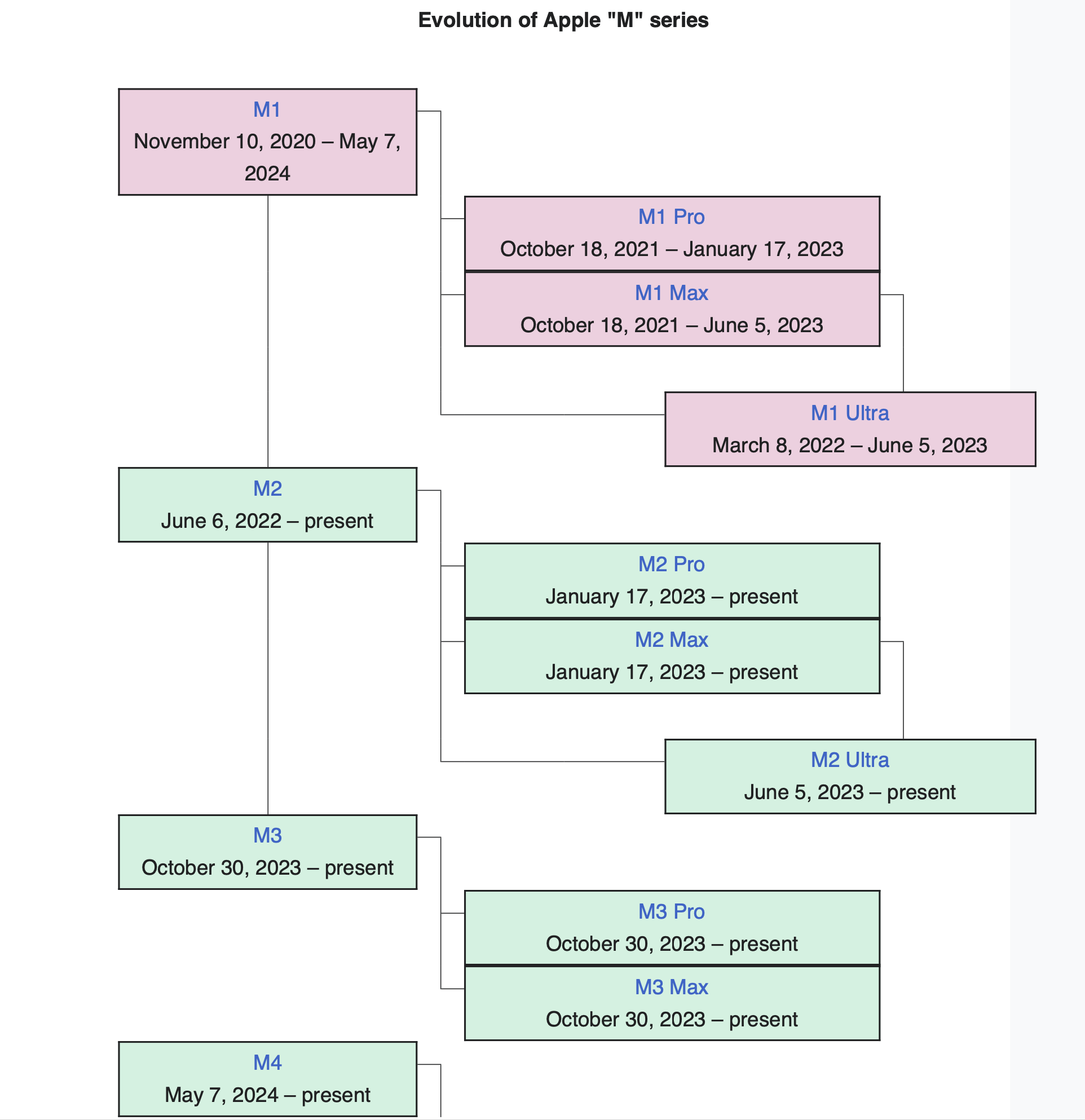

M1-series Apple Silicon SoC (5nm 1st Gen)
  Family   CPU               GPU          Neural Eng  Memory
  ----------------------------------------------------------
  M1        4 P, 4 E cores,   8 core GPU, 16 core NE,  16 GB
  M1 Pro    8 P, 2 E cores,  16 core GPU, 16 core NE,  32 GB
  M1 Max    8 P, 2 E cores,  32 core GPU, 16 core NE,  64 GB
  M1 Ultra 16 P, 4 E cores,  64 core GPU, 32 core NE, 128 GB


M2-series Apple Silicon SoC (5nm 2nd Gen)
  Family   CPU               GPU          Neural Eng  Memory
  ----------------------------------------------------------
  M2        4 P, 4 E cores,  10 core GPU, 16 core NE,  24 GB
  M2 Pro    8 P, 4 E cores,  19 core GPU, 16 core NE,  32 GB
  M2 Max    8 P, 4 E cores,  38 core GPU, 16 core NE,  96 GB
  M2 Ultra 16 P, 8 E cores,  76 core GPU, 32 core NE, 192 GB


M3-series Apple Silicon SoC (3nm 1st Gen) - Oct.30, 2023
  Family   CPU               GPU          Neural Eng  Memory
  ----------------------------------------------------------
  M3        4 P, 4 E cores,  10 core GPU, 16 core NE,  24 GB
  M3 Pro    6 P, 6 E cores,  18 core GPU, 16 core NE,  36 GB
  M3 Max   12 P, 4 E cores,  40 core GPU, 16 core NE, 128 GB
  M3 Ultra 24 P, 8 E cores,  80 core GPU, 32 core NE, 256 GB


M4-series Apple Silicon SoC (3nm 2nd Gen) for iPad Pro
  Family   CPU               GPU          Neural Eng  Memory
  ----------------------------------------------------------
  M4        4 P, 6 E cores,  10 core GPU, 16 core NE



M4-series Apple Silicon SoC (3nm 2nd Gen)
  Family   CPU               GPU          Neural Eng  Memory
  ----------------------------------------------------------
  M4        4 P, 4 E cores,  10 core GPU, 32 core NE,  24 GB
  M4 Pro    6 P, 6 E cores,  18 core GPU, 32 core NE,  36 GB
  M4 Max   12 P, 4 E cores,  40 core GPU, 32 core NE, 128 GB
  M4 Ultra 24 P, 8 E cores,  80 core GPU, 64 core NE, 256 GB


M5-series Apple Silicon SoC (1.2nm) - 2025 ???
  Family   CPU               GPU          Neural Eng  Memory
  ----------------------------------------------------------



Latest News About Apple Silicon
  https://techurls.com/?q=Apple%2BSilicon

New Video Provides Rare Look Inside an Apple Silicon Lab
  Apple_Silicon.mp4
